COLD PLATES
Industrial

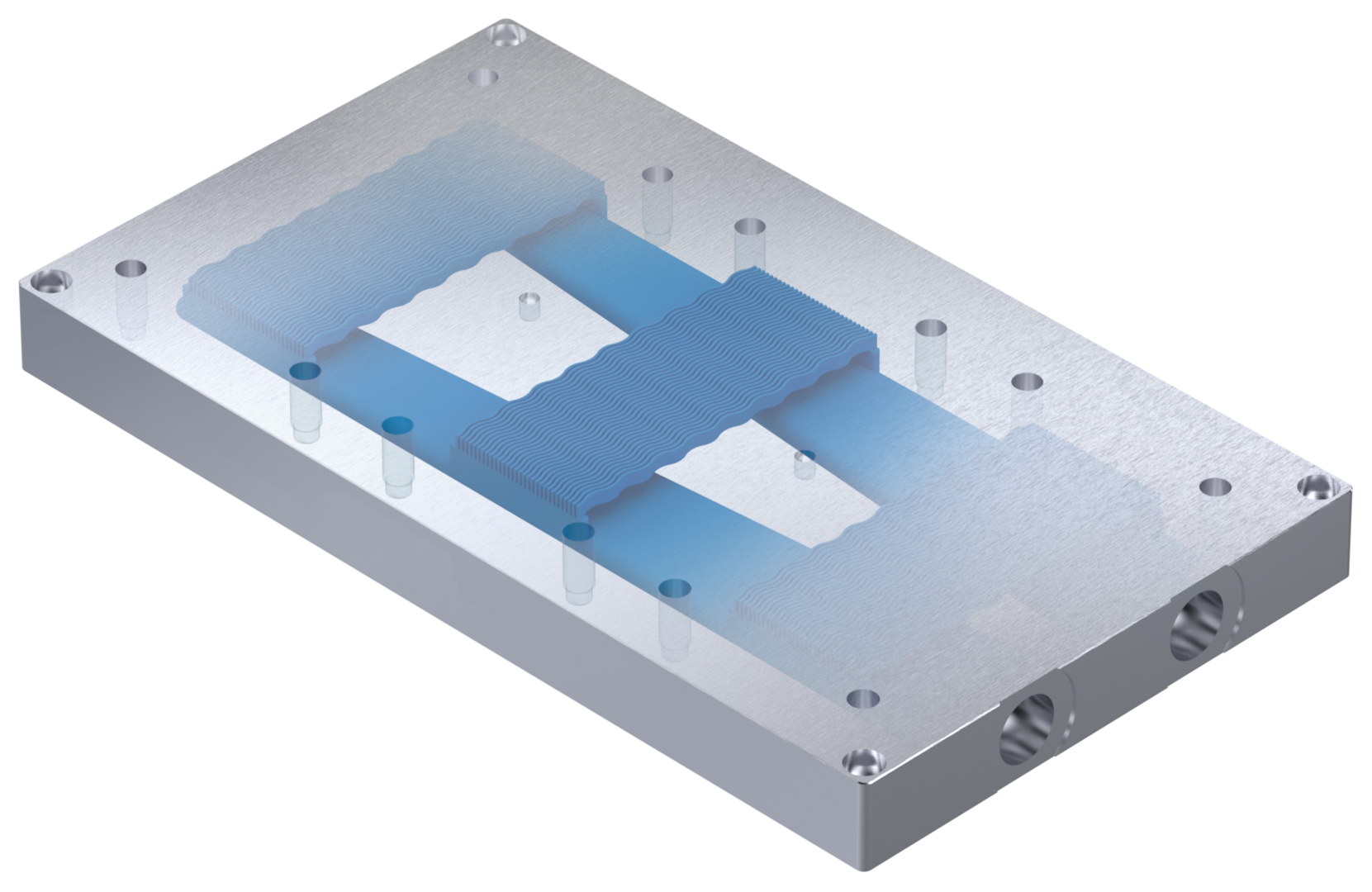

B009
225 × 130 × 20mm
θTR = 0.02 K/W
Δp = 5 kPa
Verification preformed under following conditions:
Water coolant at 20°C and a flow rate of 5 l/min on the inlet. Fitting pressure drop excluded.

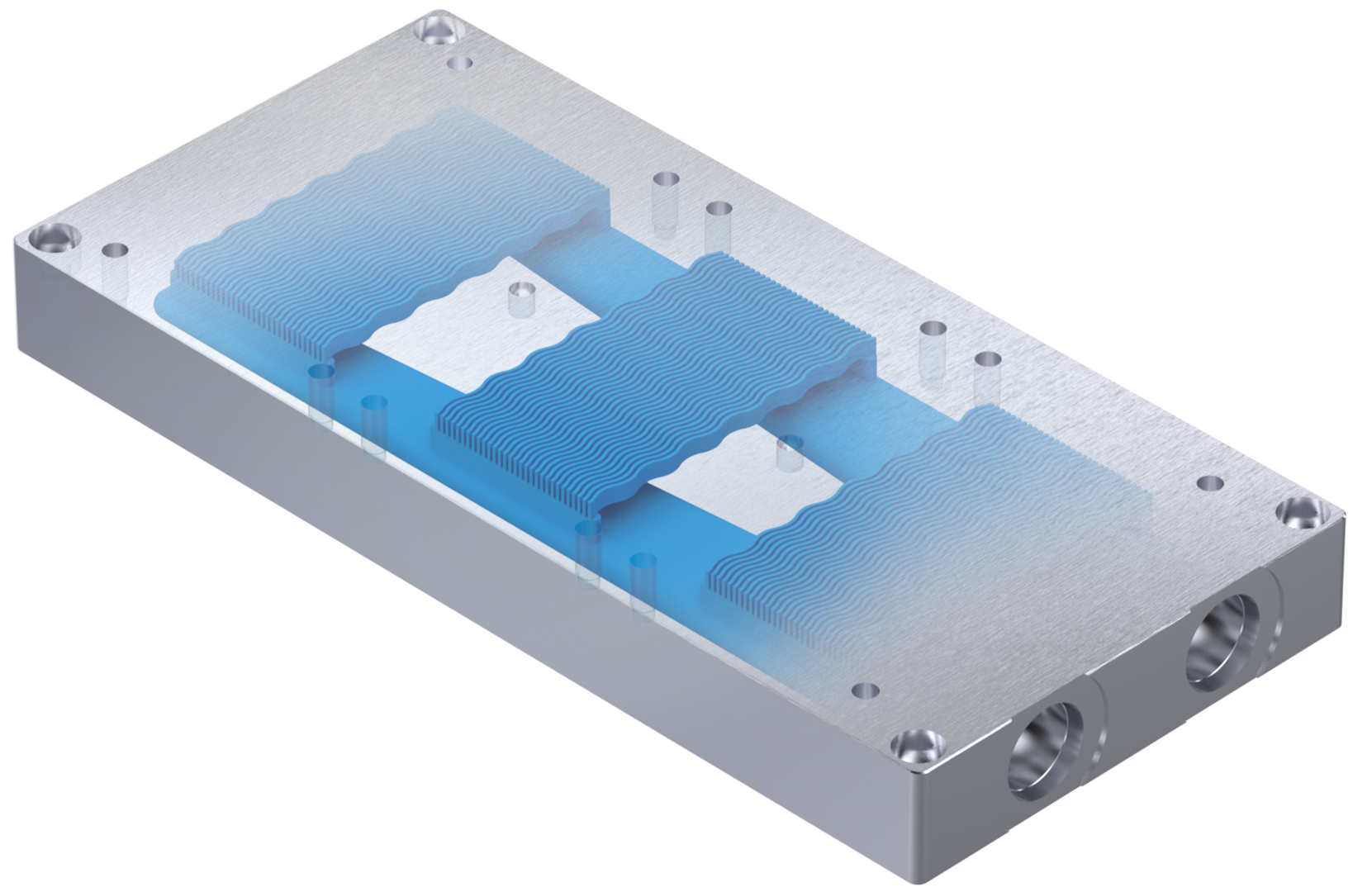

B9012
190 × 90 × 20mm
θTR = 0.02 K/W
Δp = 5 kPa
Verification preformed under following conditions:
Water coolant at 20°C and a flow rate of 5 l/min on the inlet. Fitting pressure drop excluded.

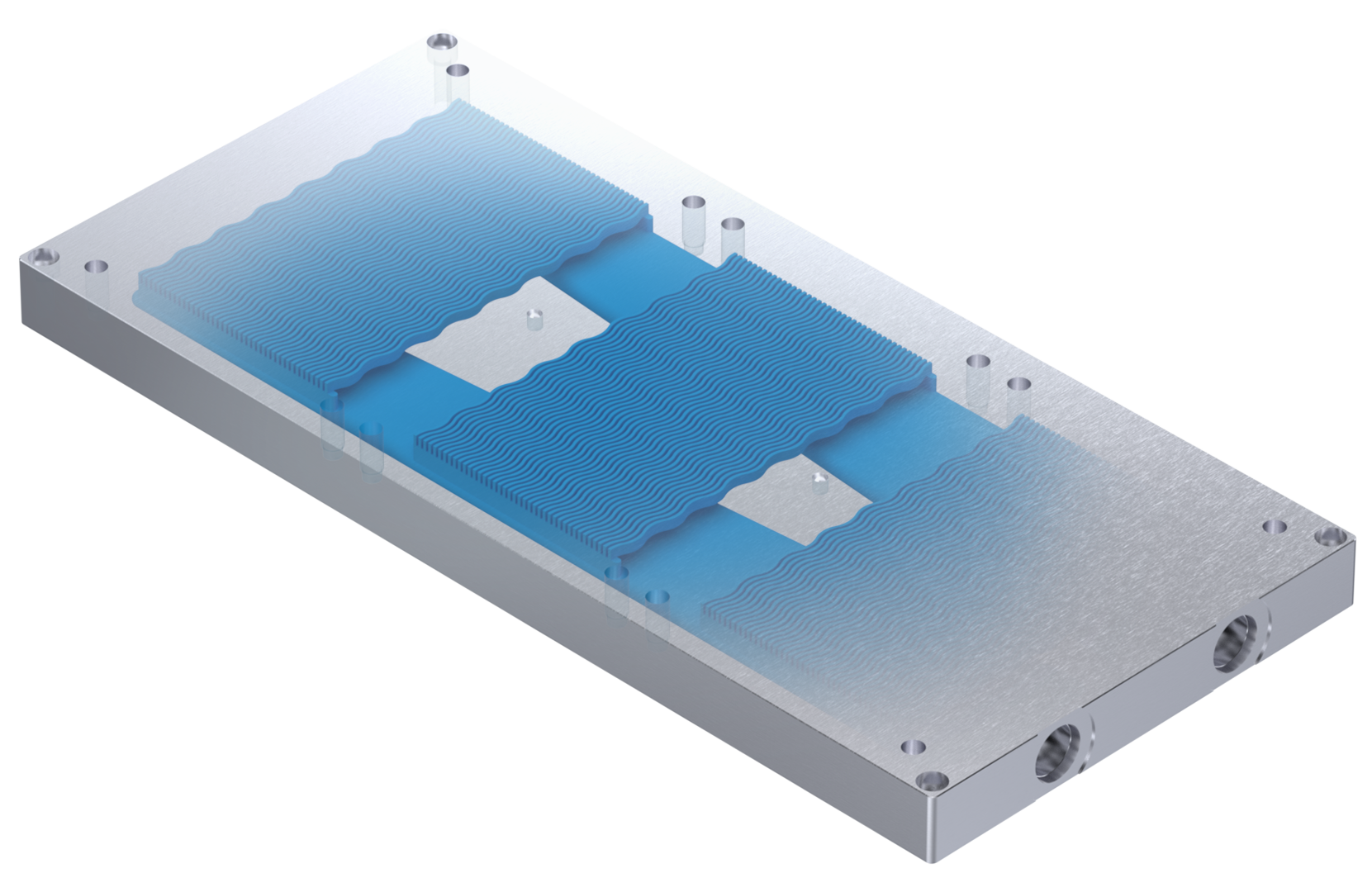

B9013
321 × 150 × 20mm
θTR = 0.021 K/W
Δp = 7 kPa
Verification preformed under following conditions:
Water coolant at 20°C and a flow rate of 10 l/min on the inlet. Fitting pressure drop excluded.

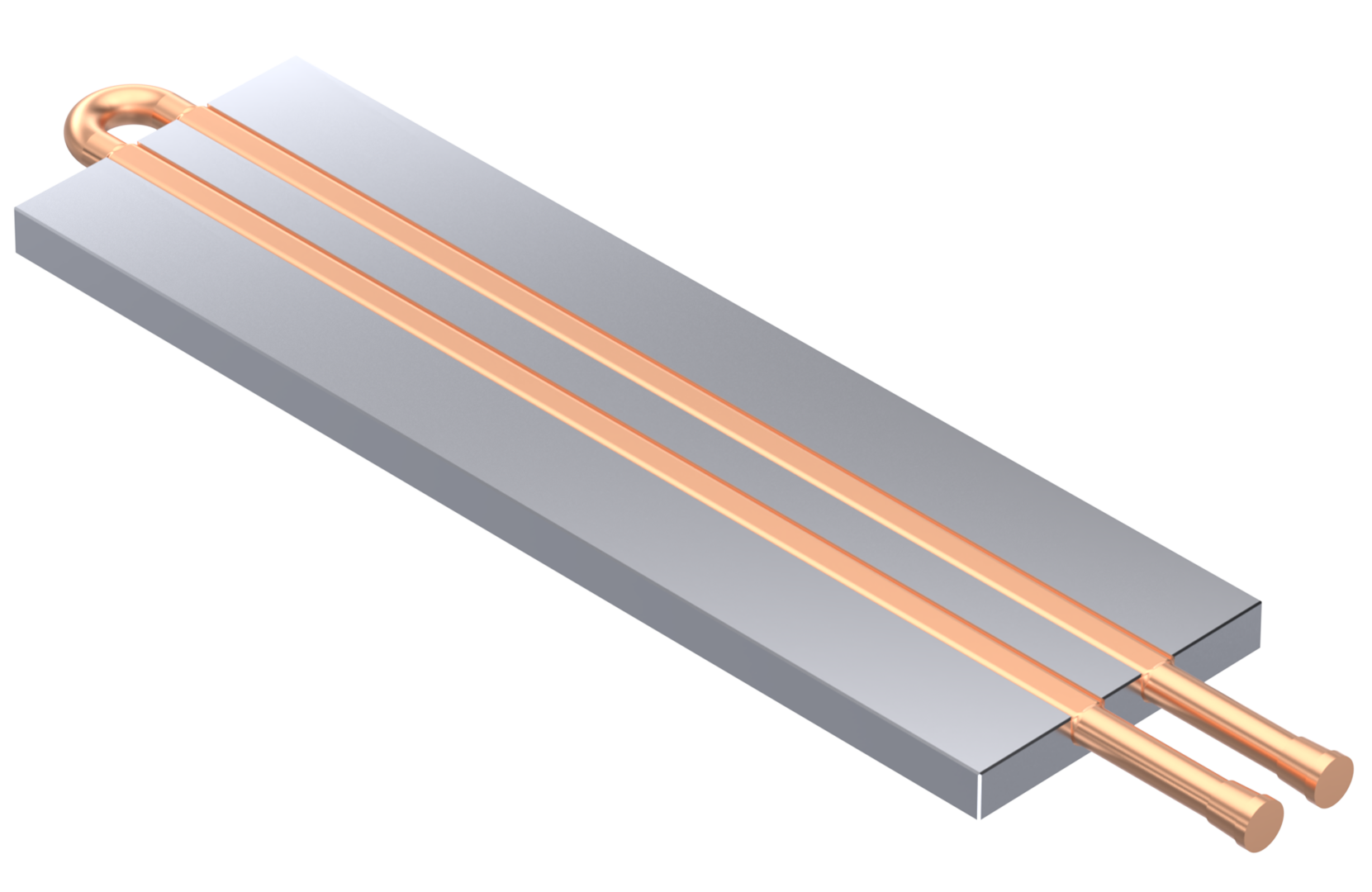

CE 2.0 L
304 × 89 × 13mm
Press-Fit Technology
Thermal Performance 0.004 to 0.061°C/W
Max. Pressure 12 bar
Max. Flow Rate 5 l/min; Straight Fittings
Verification preformed under following conditions:
PG25 coolant at 20 degrees °C inlet, 1 liter per minute flowrate. fitting pressure drop excluded

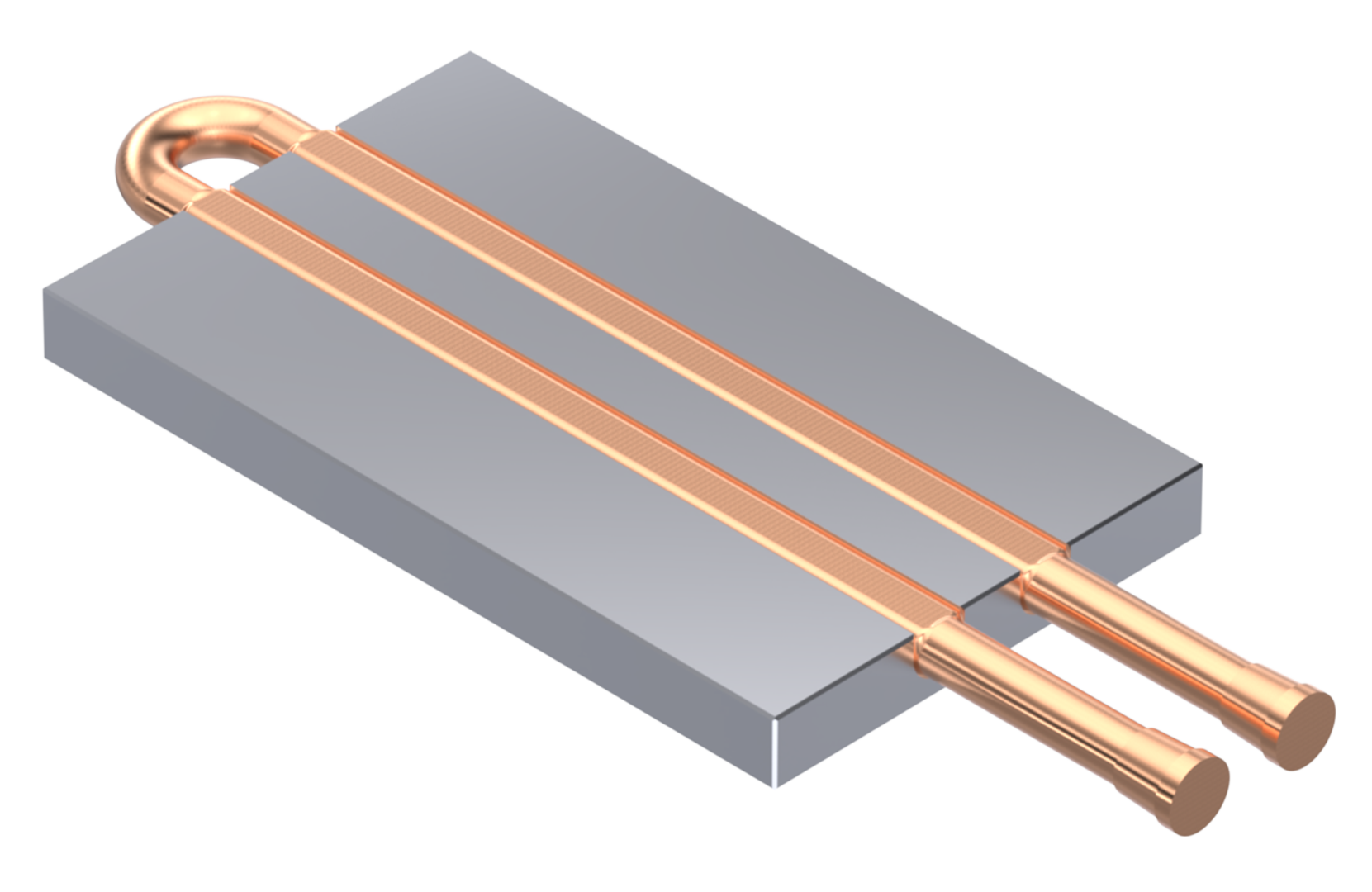

CE 2.0 S
304 × 89 × 13mm
A cost effective, single-sided aluminum cold plate available with either copper or stainless steel tubes.
Solution is offered without epoxy resulting in superior thermal performance
Verification preformed under following conditions:
PG25 coolant at 20 degrees °C inlet, 1 liter per minute flowrate. fitting pressure drop excluded

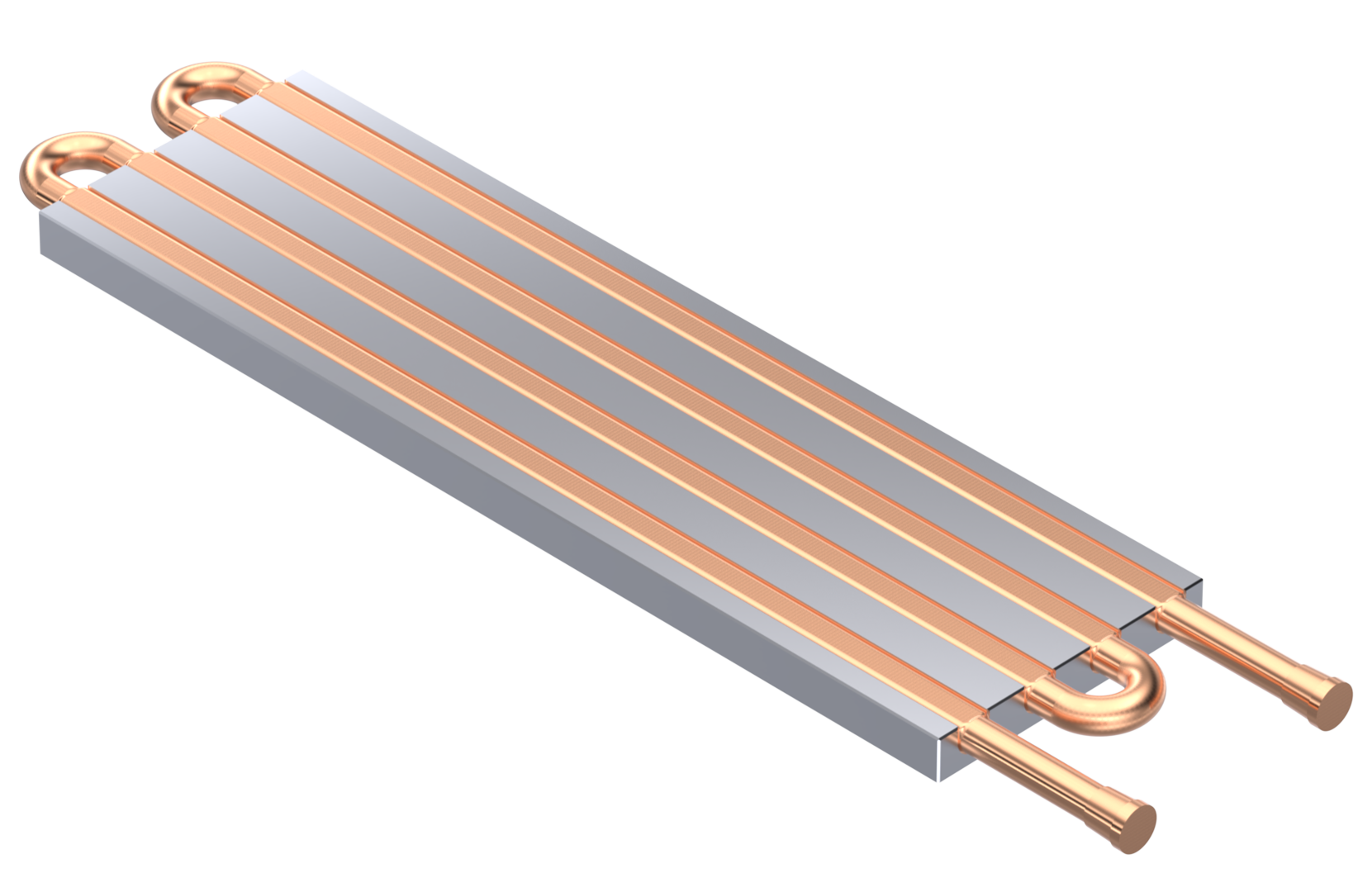

CE 4.0 L
304 × 127 × 13mm
Copper Cold Plate 6"x3,5"
15.24 cm x 8.89 cm with
3/8" 4-Pass Copper tube, beaded fittings
Verification preformed under following conditions:
PG25 coolant at 20 degrees °C inlet, 1 liter per minute flowrate. fitting pressure drop excluded

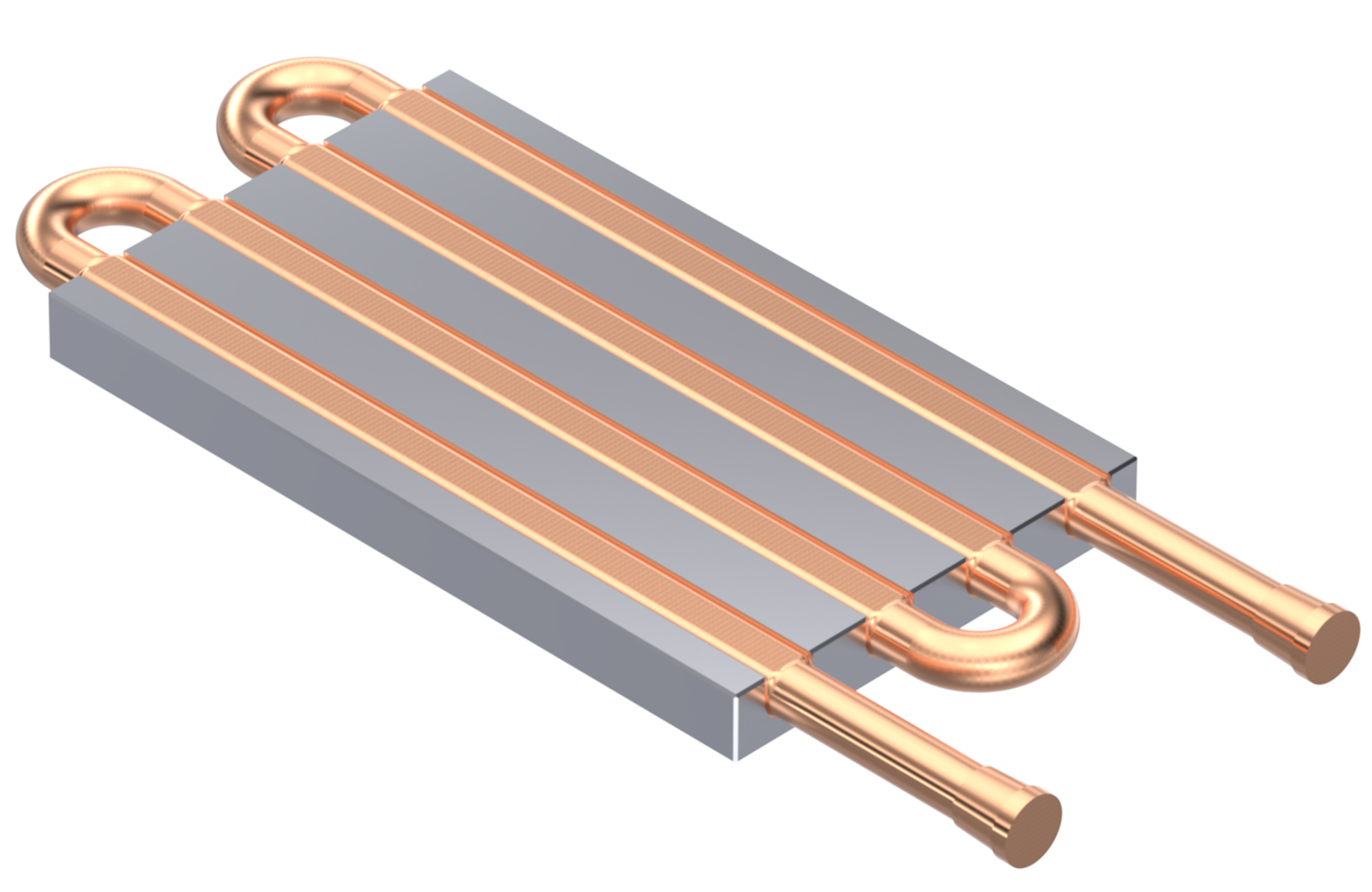

CE 4.0 S
304 × 127 × 13mm
Copper Cold Plate 6"x3,5"
15.24 cm x 8.89 cm with
3/8" 4-Pass Copper tube, beaded fittings
Verification preformed under following conditions:
PG25 coolant at 20 degrees °C inlet, 1 liter per minute flowrate. fitting pressure drop excluded

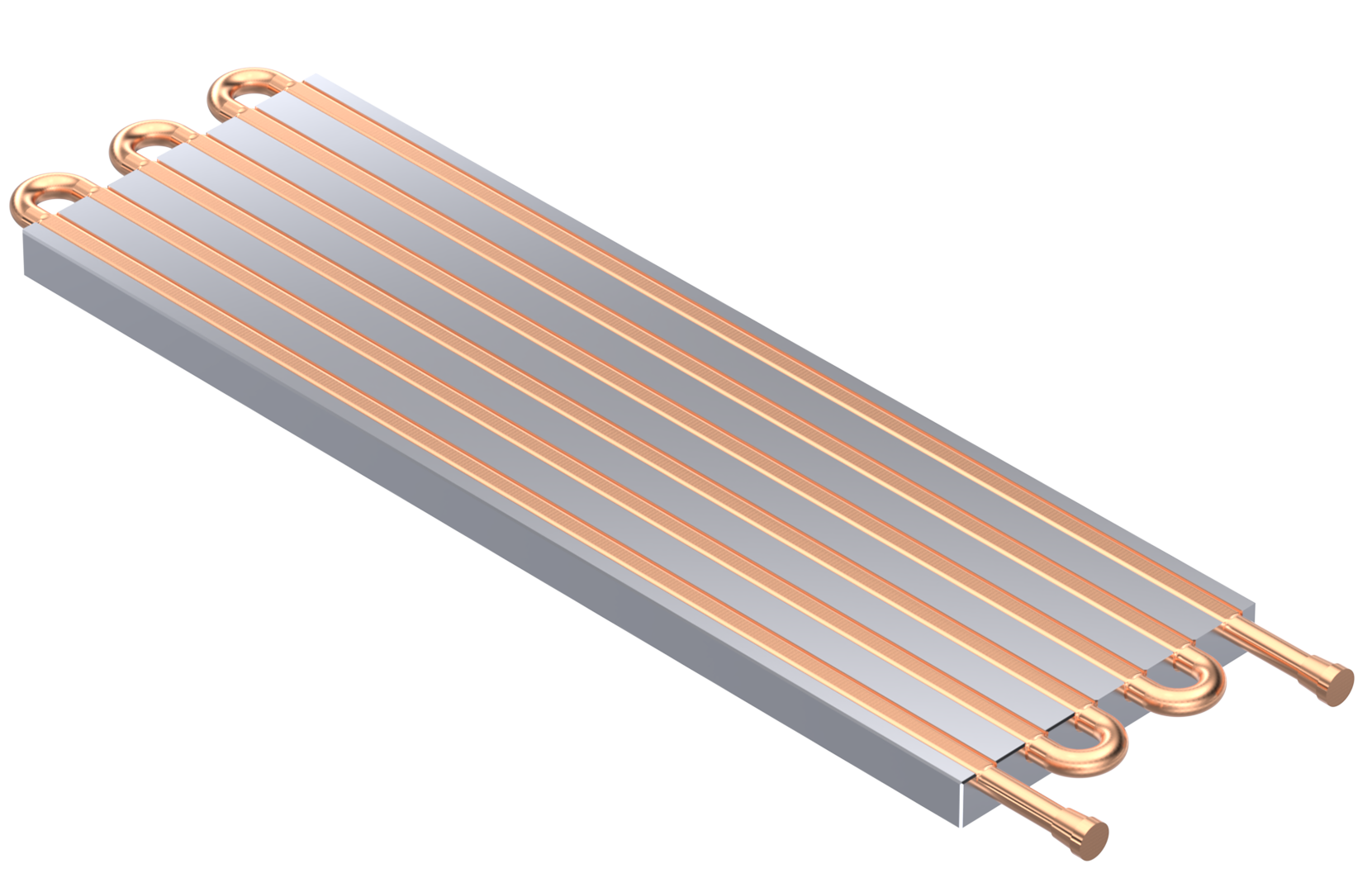

CE 6.0 L
Dimensions: 12"x3.75", 30.48 cm x 9.53 cm with 6-Pass 1/4" Copper tube, beaded fittings
A cost effective, single-sided aluminum cold plate available with either copper or stainless steel tubes.
Solution is offered without epoxy resulting in superior thermal performance.
Verification preformed under following conditions:
PG25 coolant at 20 degrees °C inlet, 1 liter per minute flowrate. fitting pressure drop excluded

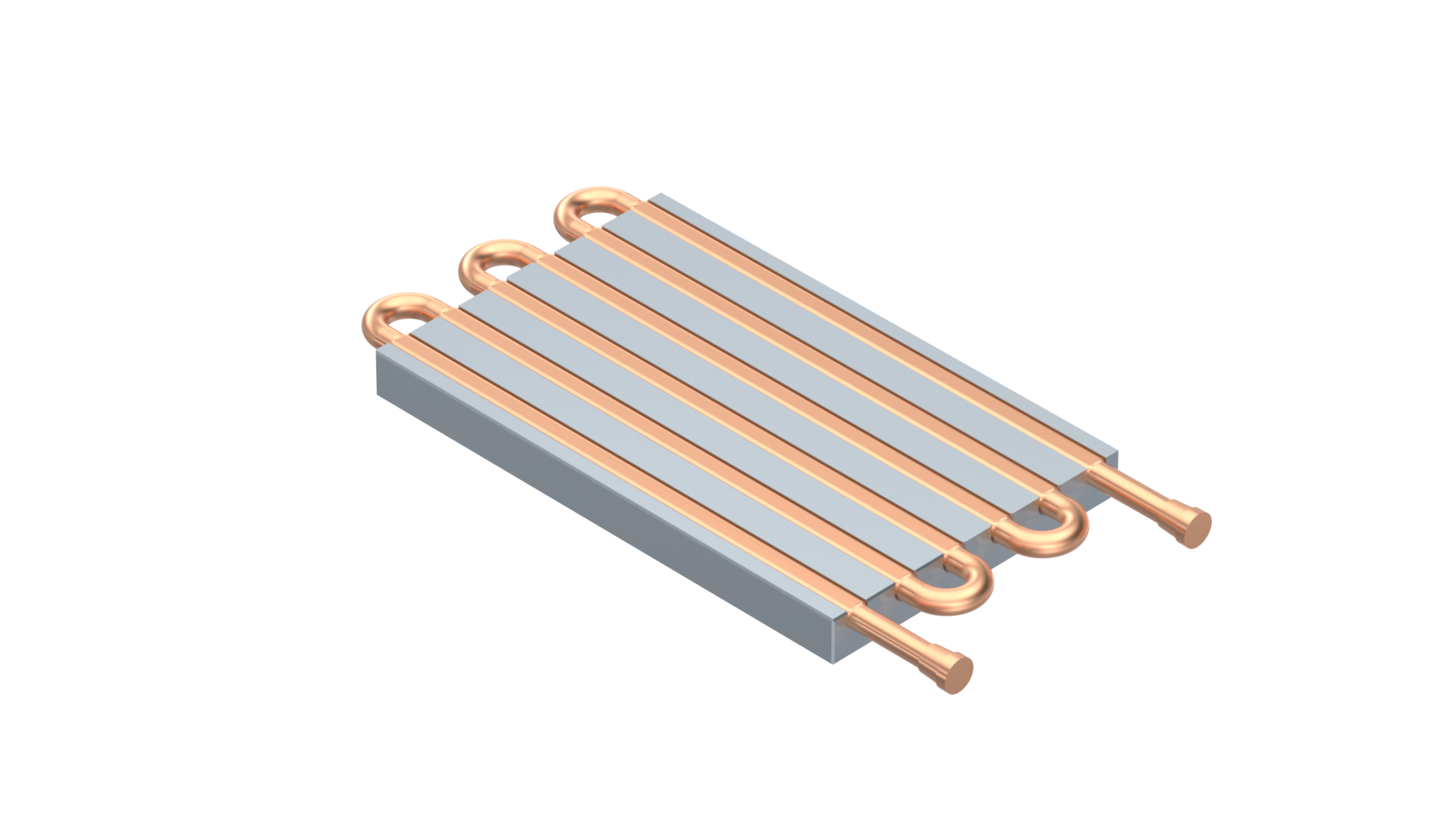

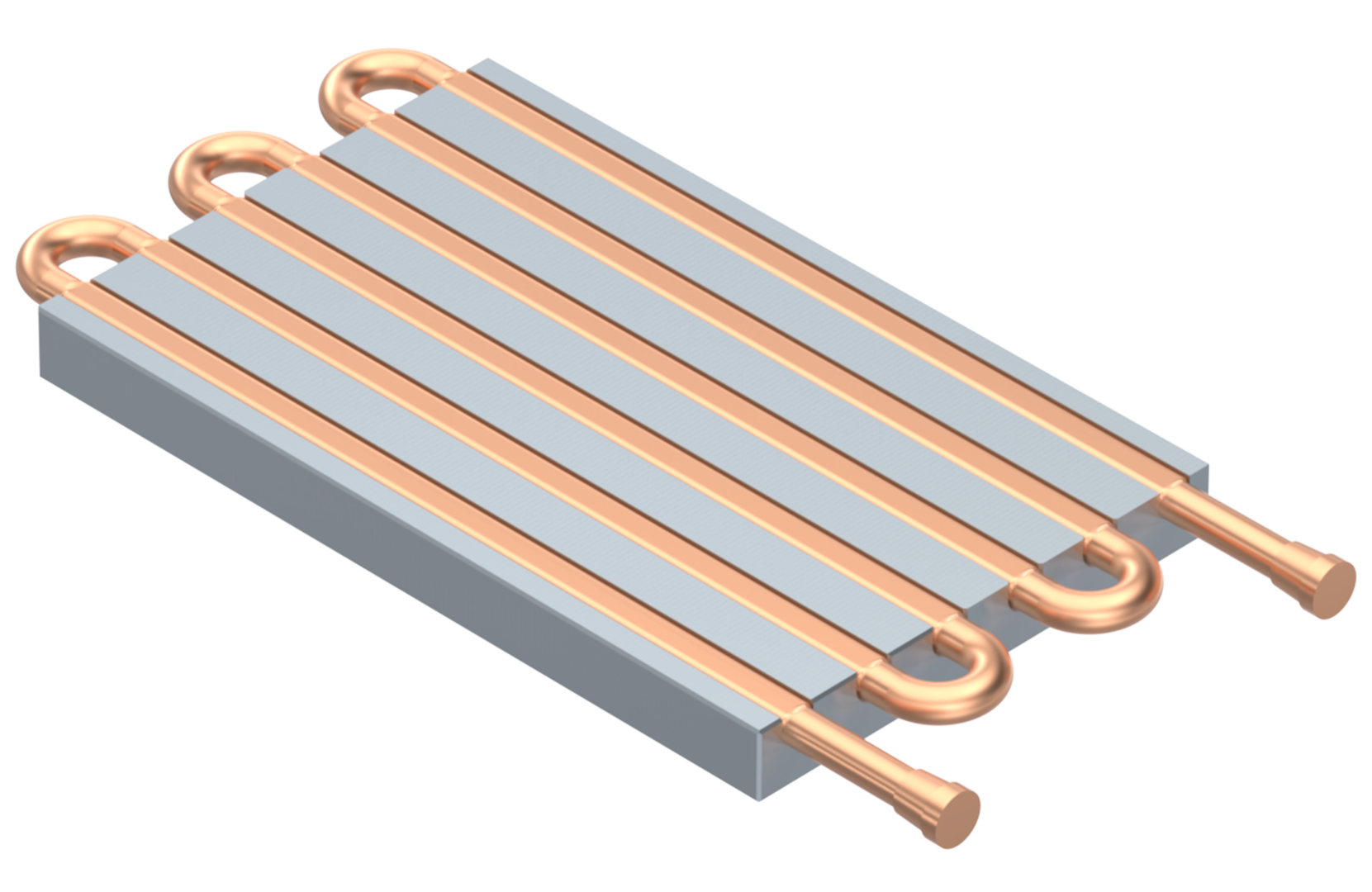

CE 6.0 S
Aluminum Cold Plate 6"x3.75"
15.24 cm x 9.53 cm with
6-Pass 1/4" Copper tube, beaded fittings
Verification preformed under following conditions:
PG25 coolant at 20 degrees °C inlet, 1 liter per minute flowrate. fitting pressure drop excluded
