COLD PLATES
Data center cooling

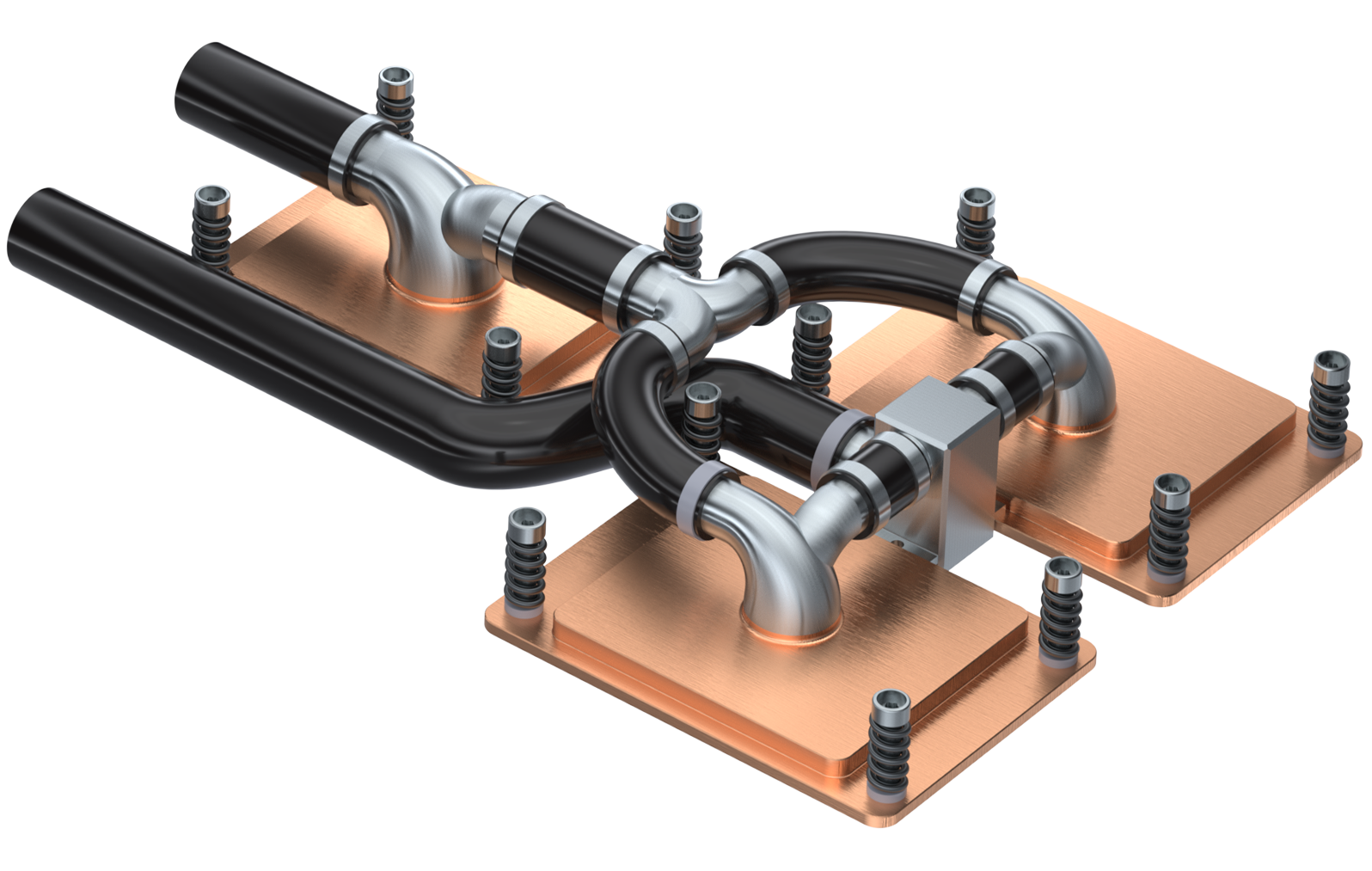

NVIDIA GB200
2700W
Δp = 2 kPa GPU + 3.1kPa Grace CPU
B200 θ = 0.0193, CPU θ = 0.0161 [2L/min]
Verification preformed under the following conditions:
PG25 coolant at 20 degrees °C inlet, 1 liter per minute flowrate for each B200 and 2 liter per minute for Grace CPU. Fitting pressure drop excluded

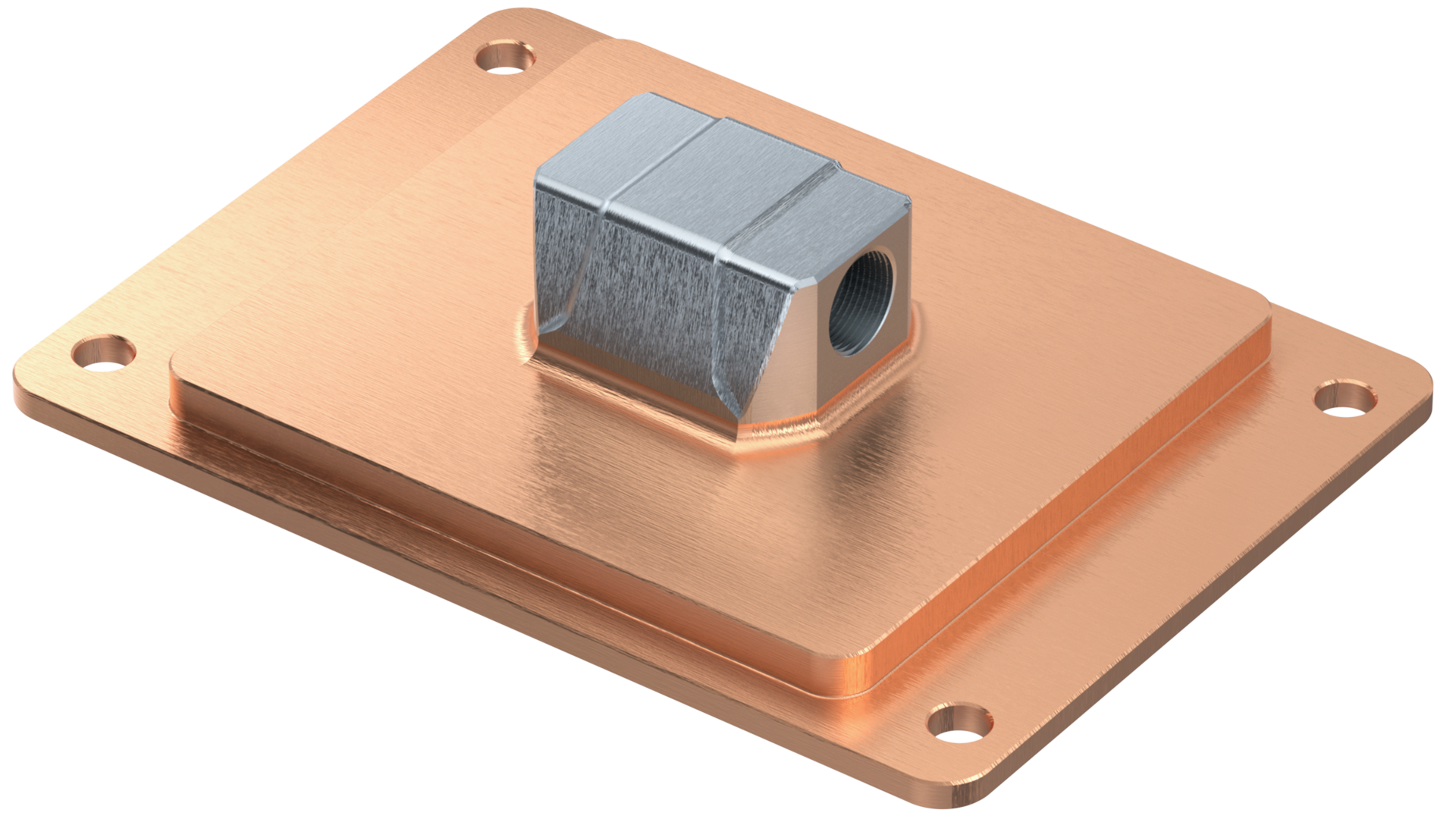

NVIDIA B200
1200W
Δp = 2 kPa
θ = 0.0193K/W
Verification preformed under the following conditions:
PG25 coolant at 20 degrees °C inlet, 1 liter per minute flowrate. fitting pressure drop excluded

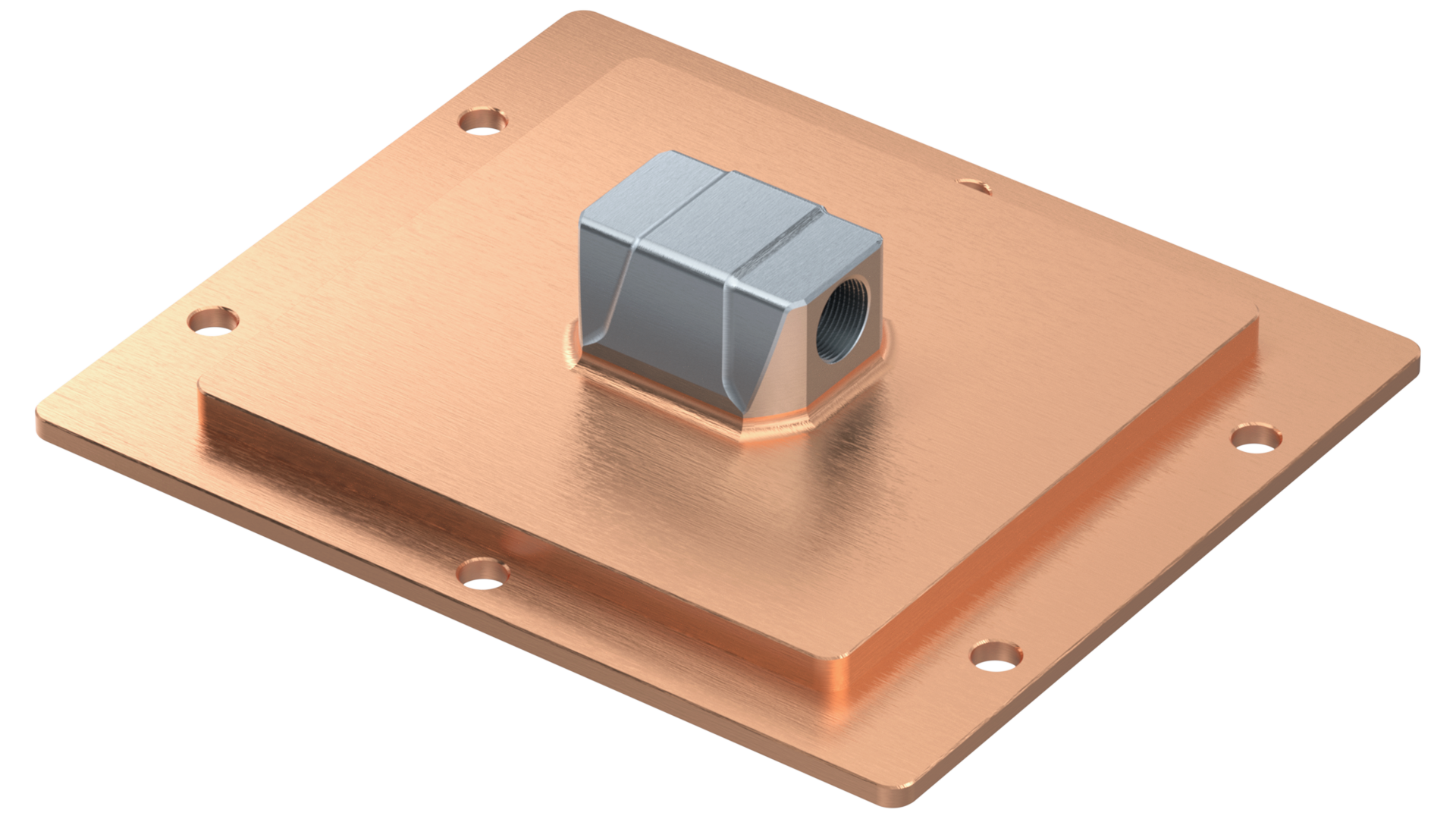

AMD SP7
600W
Δp = 1.6 kPa
θ = 0.0186K/W
Verification preformed under the following conditions:
PG25 coolant at 20 degrees °C inlet, 1 liter per minute flowrate. fitting pressure drop excluded

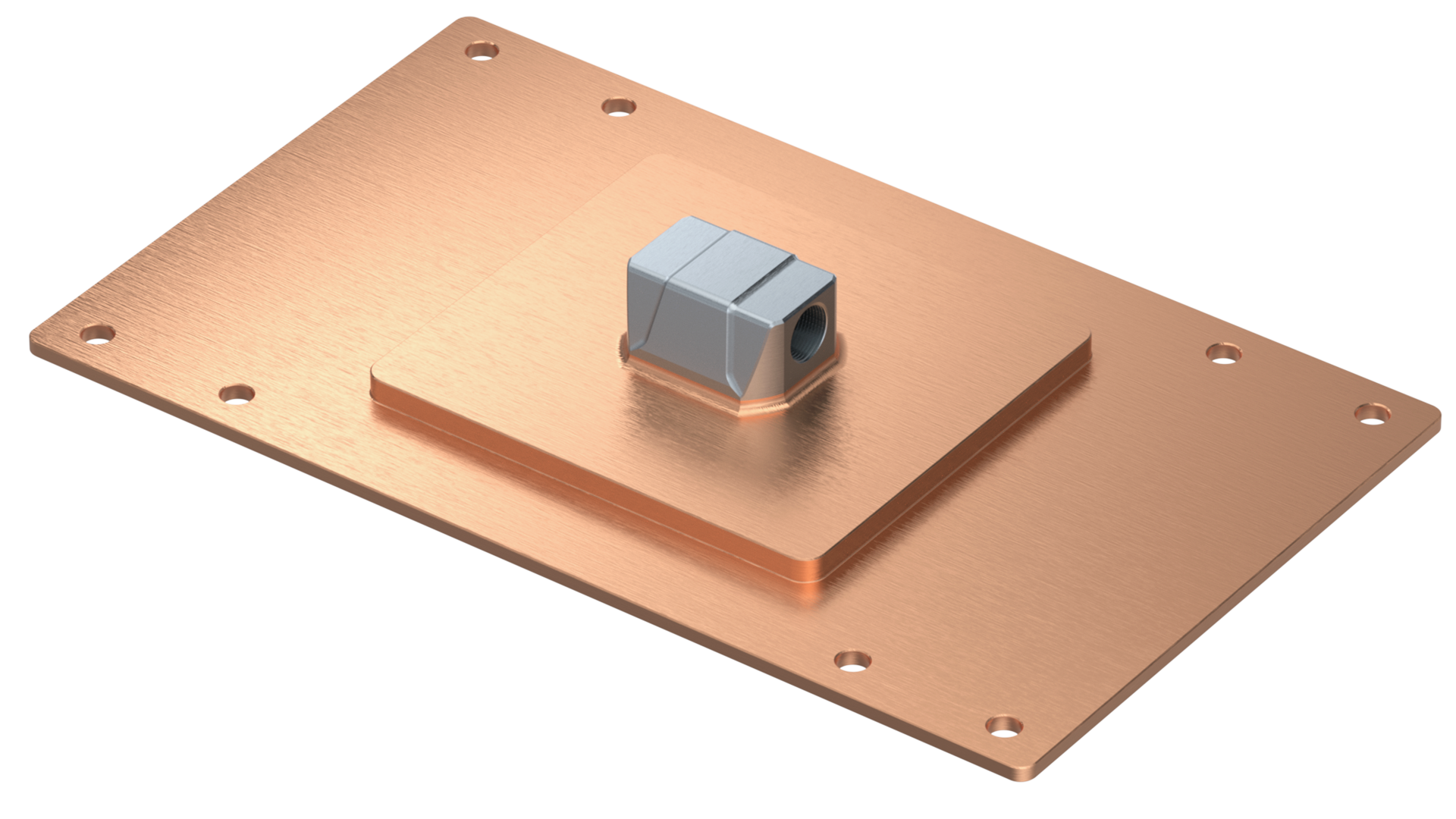

AMD MI355X
1400W
Δp = 2.1 kPa
θ = 0.0196K/W
Verification preformed under the following conditions:
PG25 coolant at 20 degrees °C inlet, 1 liter per minute flowrate. fitting pressure drop excluded

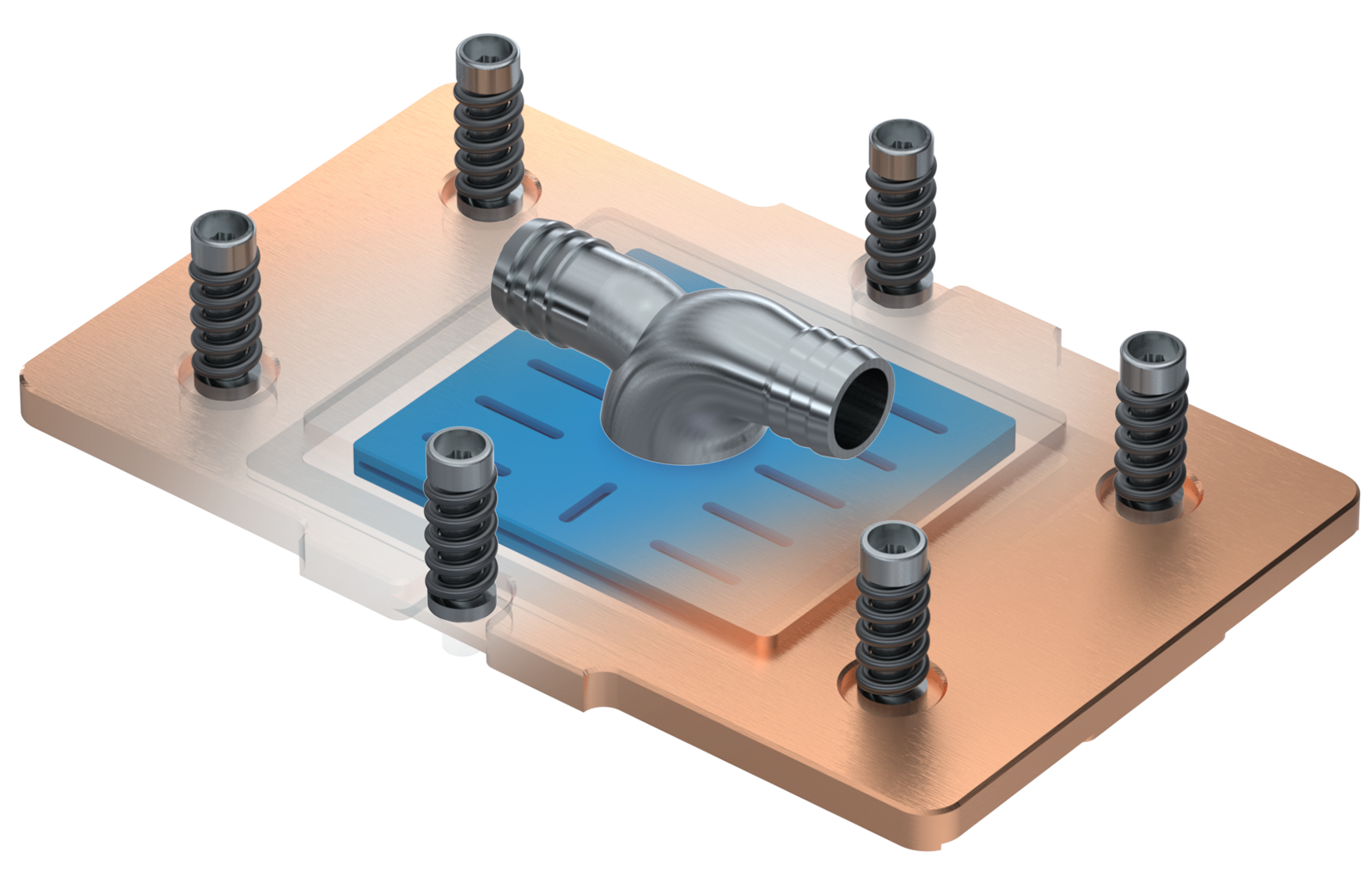

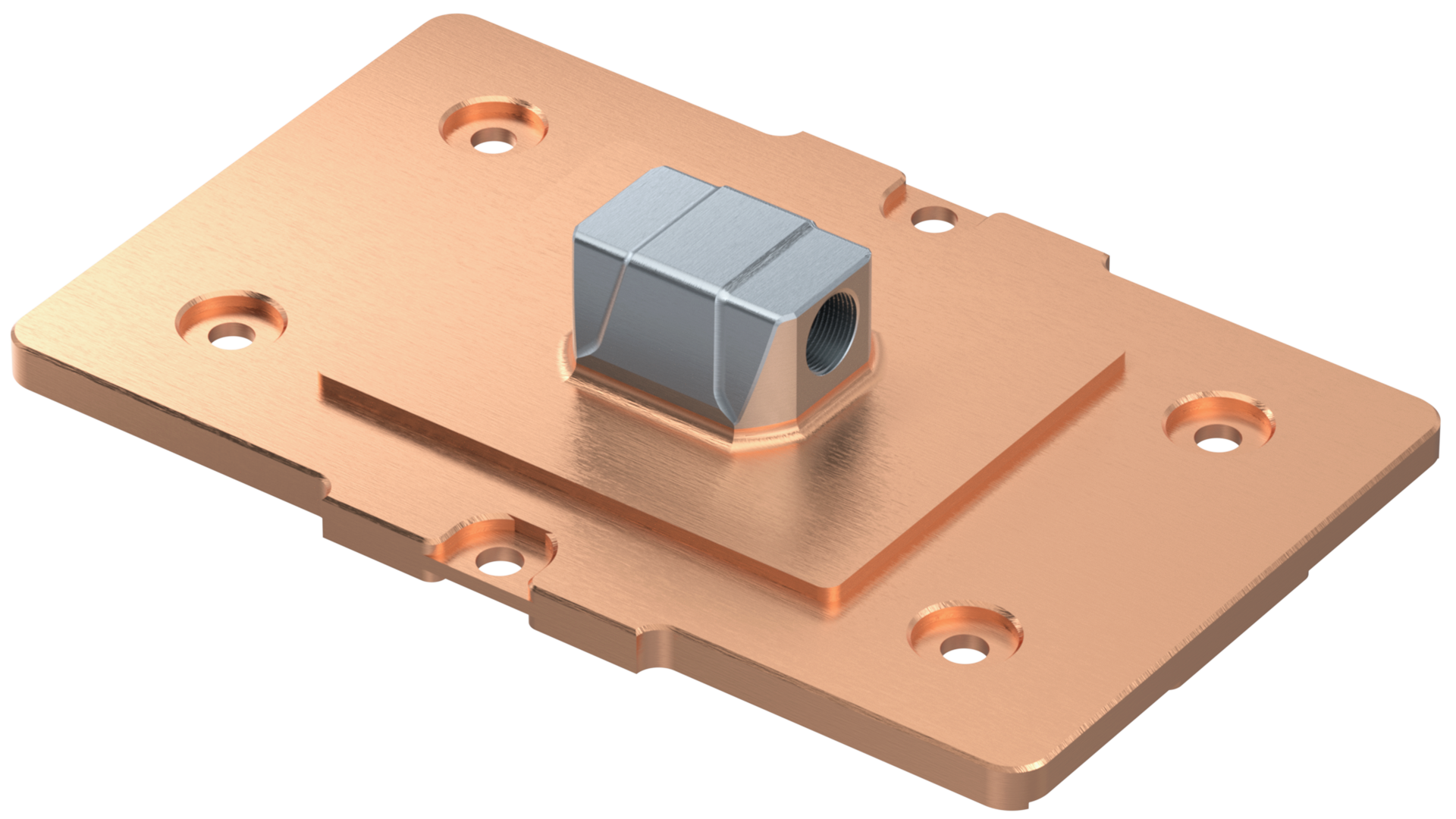

AMD SP5
500W
Δp = 1.8 kPa
θ = 0.0186K/W
Verification preformed under the following conditions:
PG25 coolant at 20 degrees °C inlet, 1 liter per minute flowrate. fitting pressure drop excluded
Other data center products
RACK MANIFOLDS
ZeroKelvin rack manifolds feature optimized geometries for perfectly balanced flow distribution across every outlet. Designed with precise cross-sections and tested up to 100 bar, they deliver reliable performance for demanding cooling environments.
END-TO-END COOLING SOLUTION
ZeroKelvin, together with partners offers a complete end-to-end cooling solution that integrates chillers or dry coolers, rear-door heat exchangers, rack manifolds, and plumbing into one unified system. This holistic approach delivers higher efficiency, built-in redundancy, and simplified deployment with a single vendor and a single point of responsibility.
