RACK MANIFOLDS
Data center cooling

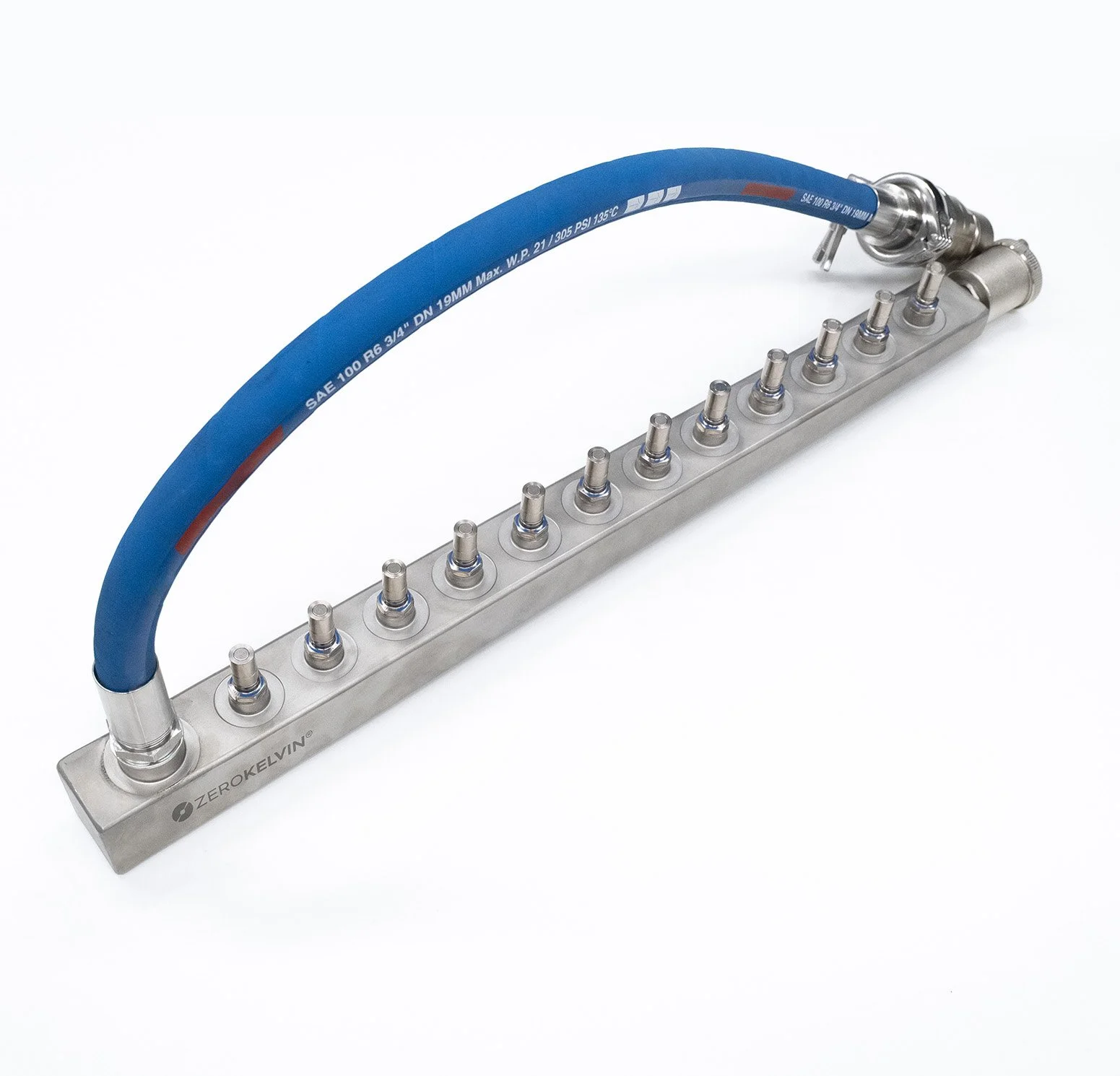

SERVER RACK MANIFOLD UNIFORM
Leakproof performance is achieved through fittings reinforced with additive manufacturing. This design removes the need for sealing elements and O-rings. With fewer components that can fail, this system is significantly more reliable.

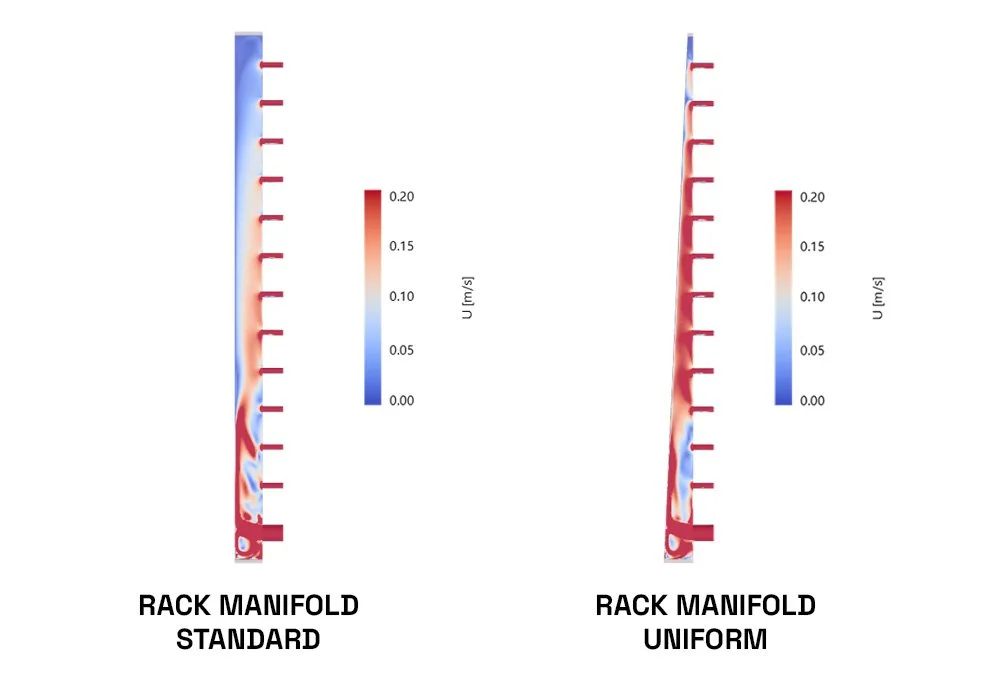

The manifold’s unique design delivers a more uniform flow distribution, resulting in more consistent cold-plate performance throughout the rack. For GPUs to operate with maximum reliability, cooling power must stay as close to the specified level as possible. Any uneven cooling caused by manifold design limitations can reduce GPU performance by starving certain cold plates of adequate cooling. This uneven flow becomes even more pronounced at higher flow rates, making it a critical issue for high-performance GPUs.

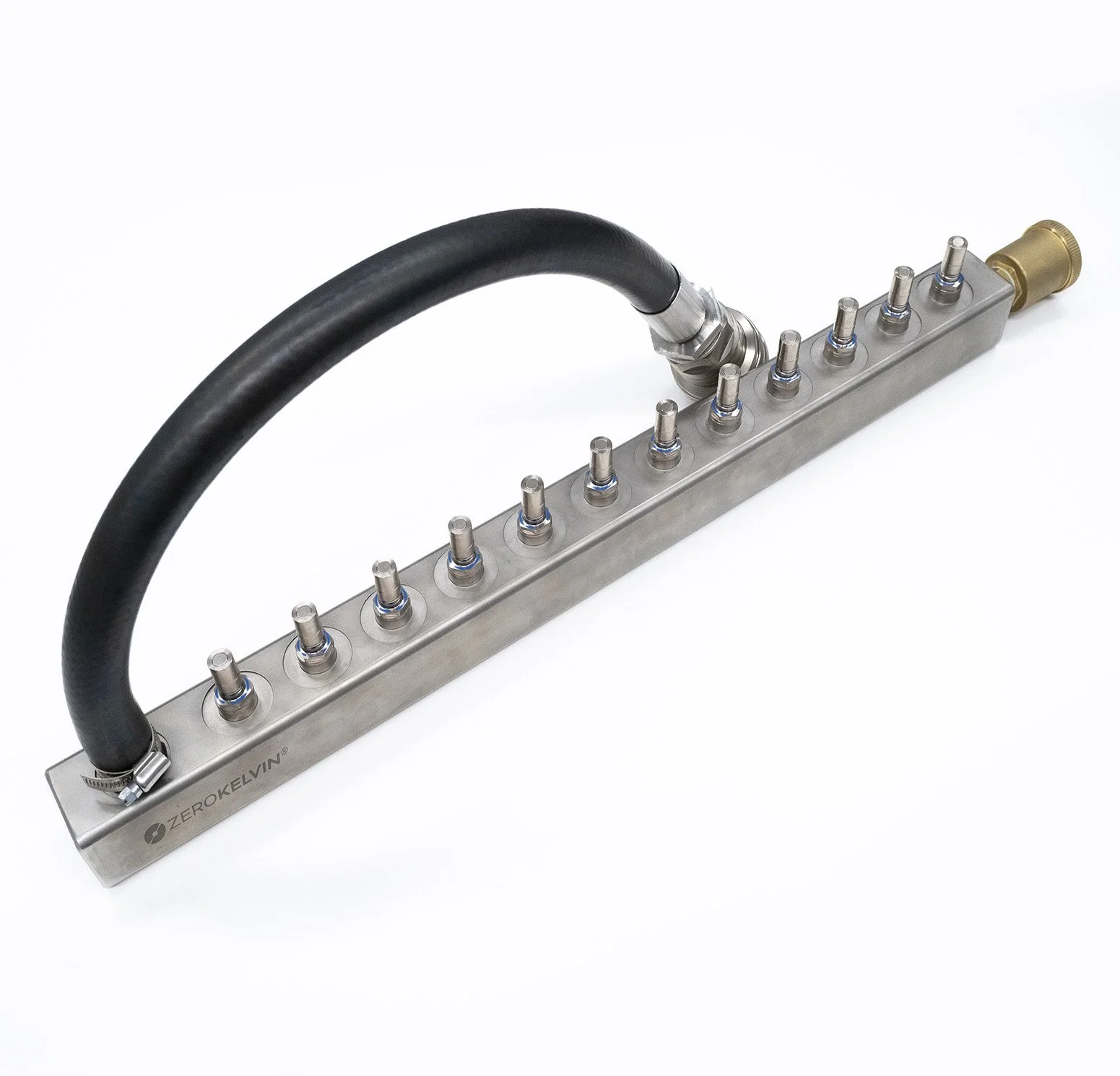

SERVER RACK MANIFOLD STANDARD
Stainless steel 316L design
from 12U up to 52U in size
Custom fitting type
Scalable design
Reliable
Other data center products
COLD PLATES
ZeroKelvin rack manifolds feature optimized geometries for perfectly balanced flow distribution across every outlet. Designed with precise cross-sections and tested up to 100 bar, they deliver reliable performance for demanding cooling environments.
END-TO-END COOLING SOLUTION
ZeroKelvin, together with partners offers a complete end-to-end cooling solution that integrates chillers or dry coolers, rear-door heat exchangers, rack manifolds, and plumbing into one unified system. This holistic approach delivers higher efficiency, built-in redundancy, and simplified deployment with a single vendor and a single point of responsibility.
